// Testeur NMEA V2
// Reception de trames nmea soit par wifi soit par liaison nmea0183 RS422
// Emission trame profondeur et position GPS sur liaison RS422 nmea0183
// V2 Ajout de la lecture d'un fichier kml
// Castoo
// Janvier 2020

#include "Wire.h"
#include "SSD1306Wire.h"
#include "sai_oled.h"
#include "menu_oled.h"
#include "ESP8266WiFi.h"
#include "ESP_EEPROM.h"
#include "SoftwareSerial.h"

SSD1306Wire  display(0x3c, 4, 5); // I2C sur un esp8266 donc gpio 4 > SDA & gpio 5 > SCL
menu_oled mes_menus_oled(16, 13, 0, display); // init saisie (Gpio vclk, Gpio vdt, Gpio vsw et nom de l'objet LCD)
sai_oled mon_sai_oled(16, 13, 0, display); // init saisie (Gpio vclk, Gpio vdt, Gpio vsw et nom de l'objet LCD)
uint8_t PinSW = 0;  // Gpio x sur sortie SW du selecteur rotatif
#define sl_rx 14 // Reception interface serie logiciele
#define sl_tx 12 // Emission interface serie logiciele
SoftwareSerial swSer; // Déclaration du port serie RS422 (port logiciel)

int B_menu; // Choix selectionné dans menu
char ch_result[25]; // Chaine résultat du menu

const int nb_ch_menuA = 5; // choix du menu Principal
const String ch_menuA[] = {"Modif. parametres", "Lecture flux NMEA", "Compteur trames NMEA", "Affiche trames RMC", "Emission trame RMC RS422"};
String _ch_menuA = * ch_menuA;

const int nb_ch_menuB = 5; // choix du menu Parametres
const String ch_menuB[] = {"Type de liaison active", "Parametres Wifi", "Parametres série", "Afficher Parametres", "Retour"};
String _ch_menuB = * ch_menuB;

const int nb_ch_menuC = 4; // choix du menu Parametres type de réseau
const String ch_menuC[] = {"Réseau Wifi", "Réseau Série", "Lecture kml sur usb", "Retour"};
String _ch_menuC = * ch_menuC;

const int nb_ch_menuD = 5; // choix du menu Parametres wifi
const String ch_menuD[] = {"Selection du réseau Wifi", "Adresse IP réseau Wifi", "Port réseau Wifi", "Connexion Wifi", "Retour"};
String _ch_menuD = * ch_menuD;

const int nb_ch_menuE = 5; // choix du menu Parametres Liaison série RS422
const String ch_menuE[] = {"Vitesse 4800", "Vitesse 38400", "Vitesse choisie", "Schéma de connexion", "Retour"};
String _ch_menuE = * ch_menuE;

String trame_nmea = ""; // Trame nmea

// gestion de l'eeprom
struct s_memo_rom {
	char verif_data_w[9];
	char verif_data_s[3];
	char wifi_ssid[50];
	char wifi_passe[25];
	char wifi_ip[15];
	uint16_t wifi_port;
	uint16_t rs422_vit;
	bool v_wifi;
	char position[51][26]; // Max 50 paires latitudes et longitudes
	uint8_t nb_position; // Nb de position mémorisées
} memo_rom, memo_ram;
int adr_deb_memo_rom = 0;

WiFiClient client;

// Initialise des valeurs standard pour le LCD
void prep_aff_LCD(uint8_t typ_pol) {
	display.clear();
	if(typ_pol == 16) display.setFont(ArialMT_Plain_16);
	else if(typ_pol == 24) display.setFont(ArialMT_Plain_16);
	else display.setFont(ArialMT_Plain_10);
	display.setTextAlignment(TEXT_ALIGN_LEFT);
}

// Attente donnees en lecture
void oups() {
	int delai = 1000;
	prep_aff_LCD(10);
	display.drawString(0, 10, ">> Oups Rien en ligne ! <<");
	display.drawString(0, 30, ">> Un peu de patience.. <<");
	display.drawString(0, 50, "> Si vraiment rien >reset<");
	display.display();
	while(delai > 0){delai--; if (!(digitalRead(PinSW))) return;}
}

// Mise à jour des verifications memo eeprom
void maj_verif(char v1 = 'z', char v2 = 'z', char v3 = 'z', char v4 = 'z', char v5 = 'z') {
	if( v1 != 'z' ){ memo_ram.verif_data_w[0]='1'; memo_ram.verif_data_w[1]='x';}
	if( v2 != 'z' ){ memo_ram.verif_data_w[2]='2'; memo_ram.verif_data_w[3]='x';}
	if( v3 != 'z' ){ memo_ram.verif_data_w[4]='3'; memo_ram.verif_data_w[5]='x';}
	if( v4 != 'z' ){ memo_ram.verif_data_w[6]='4'; memo_ram.verif_data_w[7]='x';}
	if( v5 != 'z' ){ memo_ram.verif_data_s[0]='1'; memo_ram.verif_data_s[1]='x';}
	memo_ram.verif_data_w[8]=0;
	memo_ram.verif_data_s[2]=0;
}

// Affichage des parametres
void aff_param(){
	prep_aff_LCD(10);
	display.drawString(0, 0, "Parametres :");
	display.drawString(0, 10, memo_ram.wifi_ssid);
	display.drawString(0, 20, memo_ram.wifi_passe);
	display.drawString(0, 30, memo_ram.wifi_ip);
	display.drawString(0, 40, String(memo_ram.wifi_port));
	display.drawString(0, 50, String(memo_ram.rs422_vit));
	display.display();
	delay(200);
	while(digitalRead(PinSW)){delay(10);}
}

// Emission de trame
void envoi_rmc_rs422(){
	int chksum = 0;
	float profondeur = 1;
	String s_profond;
	String s_chksum;
	String trame_SDDBT = "$SDDBT,7.8,f,?,M,1.3,F*";
	String trame_RMC = "$GPRMC,123030.00,A,?,0.009,,270219,,,A*";
	String p1_trame_SDDBT = trame_SDDBT.substring(0, 13);
	String p2_trame_SDDBT = trame_SDDBT.substring(14);
	String p1_trame_RMC = trame_RMC.substring(0, 19);
	String p2_trame_RMC = trame_RMC.substring(20);
	String trame_em_SDDBT;
	String trame_em_RMC;
	delay(400);
	for(int i = 0; i <= 100; i++){
		profondeur += 0.1;
		s_profond = String(profondeur);
		s_profond = s_profond.substring(0, s_profond.length()-1);
		trame_em_SDDBT = p1_trame_SDDBT + s_profond + p2_trame_SDDBT;
		trame_em_RMC = p1_trame_RMC + memo_ram.position[i%memo_ram.nb_position] + p2_trame_RMC;
		chksum = 0;
		for(int i = 1; i < trame_em_SDDBT.length()-1; i++) chksum ^= trame_em_SDDBT[i];
		s_chksum = String(chksum, HEX);
		if(s_chksum.length() < 2) s_chksum = '0' + s_chksum;
		s_chksum.toUpperCase();
		trame_em_SDDBT += s_chksum;
		swSer.println(trame_em_SDDBT);
		prep_aff_LCD(10);
		display.drawString(10, 0, "<< Emission RS422 >>");
		display.drawString(10, 10, "Trame DBT N° : " + String(i));
		display.drawStringMaxWidth(0, 25, 120, String(trame_em_SDDBT));
		display.display();
		delay(200);
		chksum = 0;
		for(int i = 1; i < trame_em_RMC.length()-1; i++)chksum ^= trame_em_RMC[i];
		s_chksum = String(chksum, HEX);
		if(s_chksum.length() < 2) s_chksum = '0' + s_chksum;
		s_chksum.toUpperCase();
		trame_em_RMC += s_chksum;
		swSer.println(trame_em_RMC);
		prep_aff_LCD(10);
		display.drawString(10, 0, "<< Emission RS422 >>");
		display.drawString(10, 10, "Trame RMC N° : " + String(i));
		display.drawStringMaxWidth(0, 25, 120, String(trame_em_RMC));
		display.display();
		if(!digitalRead(PinSW)) break;
		delay(200);
	}
}

// Affichage trames RMC
void aff_rmc() {
	char heur_format[12];
	int cpt = 0;
	char* tbuf[12] = { 0 };
	char buf[trame_nmea.length() + 1];
	trame_nmea.toCharArray(buf, trame_nmea.length());
	char *valeur = strtok(buf, ",");
	while (valeur != NULL) {
		if (cpt < 12) {	tbuf[cpt++] = valeur; } else { break; }
		valeur = strtok(NULL, ",");
	}
	prep_aff_LCD(16);
	display.drawString(30, 0, "$GPRMC");
	cpt = 1;
	while (cpt < 7){
		if(cpt == 1){
			heur_format[0] = tbuf[cpt][0];heur_format[1] = tbuf[cpt][1];heur_format[2] = ':';
			heur_format[3] = tbuf[cpt][2];heur_format[4] = tbuf[cpt][3];heur_format[5] = ':';
			heur_format[6] = tbuf[cpt][4];heur_format[7] = tbuf[cpt][5];heur_format[8] = ' ';
			heur_format[9] = 'U';heur_format[10] = 'T';heur_format[11] = 'C';heur_format[12] = 0;
			display.drawString(15, 15, String(heur_format));
		}else if(cpt == 3){
			display.drawString(10, 30, String(tbuf[cpt]));
			display.drawString(110, 30, String(tbuf[cpt+1]));
		}else if(cpt == 5){
			display.drawString(10, 45, String(tbuf[cpt]));
			display.drawString(110, 45, String(tbuf[cpt+1]));
		}
		cpt++;
	}
	display.display();
}

// Affichage trames RMC WIFI
void aff_nmea_rmc() {
	String type_trame = ""; // Type de trame nmea
	unsigned long timeout;
	while(true){
		timeout = millis();
		while (client.available() == 0) {
			if (millis() - timeout > 5000) oups();
			if (!(digitalRead(PinSW))) return;
		}
		while (client.available()) {
			char ch = static_cast(client.read());
			if (ch == '$' || ch == '!'){
				type_trame = trame_nmea.substring(0,6);
				if(String(type_trame) == "$GPRMC") aff_rmc();
				trame_nmea = "";
			}
			trame_nmea += ch;
			if (!(digitalRead(PinSW))) return;
		}
	}
}

// Affichage trames RMC liaison série
void aff_nmea_rmc_serie() {
	String type_trame = ""; // Type de trame nmea
	unsigned long timeout;
	while(true){
		timeout = millis();
		while (swSer.available() == 0) {
			if (millis() - timeout > 5000) oups();
			if (!(digitalRead(PinSW))) return;
		}
		while (swSer.available()) {
			char ch = static_cast(swSer.read());
			if (ch == '$' || ch == '!'){
				type_trame = trame_nmea.substring(0,6);
				if(String(type_trame) == "$GPRMC") aff_rmc();
				trame_nmea = "";
			}
			trame_nmea += ch;
			if (!(digitalRead(PinSW))) return;
		}
	}
}

// Attente donnees en lecture
void aff_trame() {
	prep_aff_LCD(24);
	display.drawString(0, 0, trame_nmea.substring(0,6));
	display.setFont(ArialMT_Plain_10);
	display.drawStringMaxWidth(0, 25, 120, String(trame_nmea));
	display.display();
	trame_nmea = "";
}

// Lecture trames NMEA WIFI
void li_trame_nmea() {
	unsigned long timeout;
	while(true){
		timeout = millis();
		while (client.available() == 0) {
			if (millis() - timeout > 5000) oups();
			if (!(digitalRead(PinSW))) return;
		}
		while (client.available()) {
			char ch = static_cast(client.read());
			if (ch == '$' || ch == '!') aff_trame();
			trame_nmea += ch;
			if (!(digitalRead(PinSW))) return;
		}
	}
}

// Lecture trames NMEA sur liaison serie
void li_trame_nmea_serie() {
	unsigned long timeout;
	while(true){
		timeout = millis();
		while (swSer.available() == 0) {
			if (millis() - timeout > 5000) oups();
			if (!(digitalRead(PinSW))) return;
		}
		while( swSer.available() ){
			char ch = static_cast(swSer.read());
			if (ch == '$' || ch == '!') aff_trame();
			trame_nmea += ch;
			if (!(digitalRead(PinSW))) return;
		}
		if (!(digitalRead(PinSW))) return;
	}
}

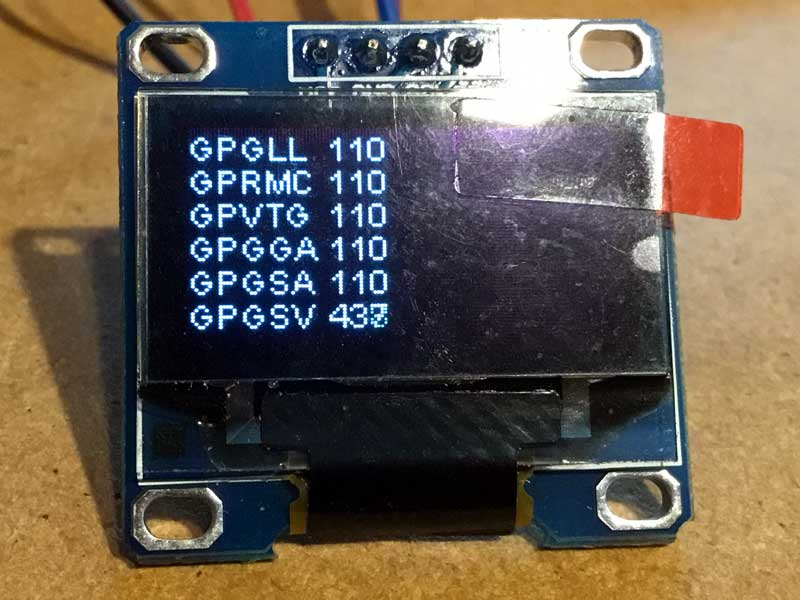

// Comptage des trames NMEA par type sur liaison wifi
void cpt_trame_nmea() {
	String type_trame = ""; // Type de trame nmea
	int cpt[10];
	String trame[10];
	uint8_t max_type = 12;
	uint8_t nb_type = 0;
	unsigned long timeout;
	while(true){
		timeout = millis();
		while (client.available() == 0) {
			if (millis() - timeout > 5000) oups();
			if (!(digitalRead(PinSW))) return;
		}
		while (client.available()) {
			char ch = static_cast(client.read());
			if (ch == '$' || ch == '!'){
				if(trame_nmea.length() > 6){
					type_trame = trame_nmea.substring(1,6);
					for (uint8_t i = 0; i <= max_type; i++){
							if( String(type_trame) == String(trame[i])){
								cpt[i] ++;
								break;
							}else if( i >= nb_type ){
								trame[i] = String(type_trame);
								cpt[i] = 1;
								nb_type ++;
								break;
							}
					}
					prep_aff_LCD(10);
					for (uint8_t i = 0; i < nb_type; i++){
						if (i<6){
							display.drawString(0, 10*i, trame[i]);
							snprintf (ch_result, 12,  " %d", cpt[i]);
							display.drawString(38, 10*i, ch_result);
						}else{
							display.drawString(65, 10*(i-6), String(trame[i]));
							snprintf (ch_result, 12,  " %d", cpt[i]);
							display.drawString(102, 10*(i-6), ch_result);
						}
					}
					display.display();
					trame_nmea = "";
					type_trame = "";
				}
			}
			trame_nmea += ch;
			if (!(digitalRead(PinSW))) return;
		}
	}
}

// Comptage des trames NMEA par type sur liaison serie
void cpt_trame_nmea_serie(){
	String type_trame = ""; // Type de trame nmea
	int cpt[10];
	String trame[10];
	uint8_t max_type = 12;
	uint8_t nb_type = 0;
	unsigned long timeout;
	while(true){
		timeout = millis();
		while (swSer.available() == 0) {
			if (millis() - timeout > 5000) oups();
			if (!(digitalRead(PinSW))) return;
		}
		while (swSer.available()) {
			char ch = static_cast(swSer.read());
			if (ch == '$' || ch == '!'){
				if(trame_nmea.length() > 6){
					type_trame = trame_nmea.substring(1,6);
					for (uint8_t i = 0; i <= max_type; i++){
							if( String(type_trame) == String(trame[i])){
								cpt[i] ++;
								break;
							}else if( i >= nb_type ){
								trame[i] = String(type_trame);
								cpt[i] = 1;
								nb_type ++;
								break;
							}
					}
					prep_aff_LCD(10);
					for (uint8_t i = 0; i < nb_type; i++){
						if (i<6){
							display.drawString(0, 10*i, trame[i]);
							snprintf (ch_result, 12,  " %d", cpt[i]);
							display.drawString(38, 10*i, ch_result);
						}else{
							display.drawString(65, 10*(i-6), String(trame[i]));
							snprintf (ch_result, 12,  " %d", cpt[i]);
							display.drawString(102, 10*(i-6), ch_result);
						}
					}
					display.display();
					trame_nmea = "";
					type_trame = "";
				}
			}
			trame_nmea += ch;
			if (!(digitalRead(PinSW))) return;
		}
	}
}

// Découverte des réseaux wifi accessibles
void decouverte_wifi() {
	String ssid_wifi[5];
	WiFi.disconnect(true);
	prep_aff_LCD(10);
	display.drawString(2, 0,  "RAZ wifi en cours...");
	display.drawString(2, 10,  ">>> Patience ... <<<");
	display.drawString(8, 30, "Attention !");
	display.drawString(0, 40, "Max 5 réseaux affichés");
	display.display();
	delay(400);
	uint8_t n = WiFi.scanNetworks();
	if( n == 0 ){
		prep_aff_LCD(16);
		display.drawString(0, 20, "Aucun réseau Wifi en vue !");
		display.drawString(0, 40, "Relancez la recherche...");
		display.display();
		while(digitalRead(PinSW)){delay(10);}
	}else{
		if(n > 5) n = 5;
		uint8_t plus_23 = 0;
		uint8_t nb_val = 0;
		for (uint8_t i = 0; i < n+1; ++i) {
			if(WiFi.SSID(i).length() <= 48 && WiFi.SSID(i).length() > 1){
				ssid_wifi[i-plus_23] = WiFi.SSID(i);
				nb_val ++;
			}else{
				plus_23++;
				i++;
			}
			delay(20);
		}
		B_menu = 0;
		B_menu = mes_menus_oled.init(nb_val-1, *ssid_wifi);
		ssid_wifi[B_menu+1].toCharArray(memo_ram.wifi_ssid, ssid_wifi[B_menu+1].length()+1);
		if(memo_ram.wifi_ssid != ""){
			prep_aff_LCD(10);
			display.drawString(0, 10, "Saisir le mot de passe");
			display.drawString(0, 20, "du réseau :");
			display.drawString(0, 35, memo_ram.wifi_ssid);
			display.display();
			delay(200);
			while(digitalRead(PinSW)){delay(10);}
			String ch_result;
			mon_sai_oled.init(); // Initialisation ecran OLED pour saisie
			ch_result = mon_sai_oled.aff_menu_Alpha();
			if(ch_result.length() > 2){
				ch_result.toCharArray(memo_ram.wifi_passe, ch_result.length()+1);
				maj_verif('x','x');
				ecriture_eeprom();
			}
		}
	}
}

// Ecriture des positions fichier kml dans eeprom
void ecriture_eeprom_positions(){
	if(memo_ram.nb_position > 0){
		EEPROM.begin(sizeof(s_memo_rom));
		Serial.println("Ecriture EEPROM");
		Serial.println("Qte Memmoire EEPROM utilisee : " + String(sizeof(s_memo_rom)));
		delay(500);
		memo_rom.nb_position = memo_ram.nb_position;
		Serial.println("Nb de position memorisee : " + String(memo_rom.nb_position));
		for(uint8_t i = 0; i <= memo_ram.nb_position; i++){
			strcpy(memo_rom.position[i], memo_ram.position[i]);
			delay(5);
			Serial.println(memo_rom.position[i]);
		}
		EEPROM.put(adr_deb_memo_rom, memo_rom);
		delay(2000);
		bool ok = EEPROM.commit();
		delay(2000);
		EEPROM.end();
		delay(500);
	}
}

// Lecture de fichier kml et traduction en coordonées nmea trames RMC
void lire_kml() {
	memo_ram.nb_position = 0;
	char char_lu; // Caractère lu sur interface série/usb
	unsigned long timeout; // Pour gérer attente début de transmission
	String longitude = "";
	String latitude = "";
	String profondeur = ""; // Au moment du dev. l'info profondeur est toujours égale à 0
	char v_long ='E'; // Est par défaut passe à Ouest si la longitude est négative
	bool lect_lat = false; // Passe à vrai quand la longitude est ok
	bool lect_prof = false; // Passe à vrai quand la latitude est ok
	uint8_t pos_pt_long = 0; // Repérage du point décimal en longitude
	uint8_t pos_pt_lat = 0; // Repérage du point décimal en latitude
	bool fin_reception = false; // On est arrivé à la fin des mesures
	String v_tmp; // Tempo pour calcul lat et long
	prep_aff_LCD(24);
	display.setTextAlignment(TEXT_ALIGN_CENTER);
	display.drawString(64, 10, "En attente...");
	display.display();
	while(!fin_reception){
		// Attente début d'émission...
		timeout = millis();
		while (Serial.available() == 0){
			if (millis() - timeout > 5000){
				oups();
				prep_aff_LCD(24);
				display.setTextAlignment(TEXT_ALIGN_CENTER);
			}
			if (!(digitalRead(PinSW))) break;
		}
		// Attente début de la liste des coordonées
		String ligne = "";
		while(ligne.indexOf(" 0){
				char_lu = Serial.read();
				if(char_lu == '>'){
					ligne = "";
				} else {
					ligne += char_lu;
				}
				delay(2);
			}
		}
		// Supression des "rdinate>\l\t\t\t\t"
		int i = 0;
		while(i < 13){
			if(Serial.available() > 0){
				char_lu = Serial.read();
				i++;
				delay(2);
			}
		}
		// Lecture des coordonées
		while(true){
			longitude = "";
			latitude = "";
			profondeur = "";
			v_long ='E'; // Est
			lect_lat = false;
			lect_prof = false;
			// Lecture d'une coordonée
			while (true){
				if(Serial.available() > 0){
					char_lu = Serial.read();
					delay(2);
					if(! lect_lat){
						// lecture Longitude
						if(char_lu == '-') v_long ='W'; // Ouest
						  else{
							if(char_lu == ','){
								lect_lat = true;
							}else{
								if(char_lu != '.'){
									if(char_lu != '\t') longitude += char_lu;
								} else pos_pt_long = longitude.length();
							}
						}
					}else if(lect_lat){
						// Lecture Latitude
						if(char_lu == ','){
							lect_prof = true;
						}else{
							if(char_lu != '.'){
								latitude += char_lu;
							}else pos_pt_lat = latitude.length();
						}
					}else if(lect_prof){
						// Lecture de la profondeur
						profondeur += char_lu;
						if(char_lu == ' '){
							break;
						}
					}
					if (!(digitalRead(PinSW))) break;
					if (char_lu == ' ') break;
				}
			}
			// Si chaine de longitude vide on sort
			if(longitude.length() < 3){ fin_reception = true; memo_ram.nb_position--; break;}
			// Mise en forme des coordonées au format nmea avec gestion du point décimal
			if(pos_pt_long == 1){
				v_tmp = "0." + longitude.substring(1, 7);
				v_tmp = String( v_tmp.toFloat() * 60 );
				if(v_tmp.toInt() < 10)
					longitude = "00" + longitude.substring(0,1) + 0  + String( longitude.substring(1, 7).toInt() * 6 );
				else
					longitude = "00" + longitude.substring(0,1) + String( longitude.substring(1, 7).toInt() * 6 );
				longitude = longitude.substring(0,5) + "." + longitude.substring(5, longitude.length());
			}else if(pos_pt_long == 2){
				v_tmp = "0." + longitude.substring(2, 7);
				v_tmp = String( v_tmp.toFloat() * 60 );
				if(v_tmp.toInt() < 10)
					longitude = "0" + longitude.substring(0, 2) + 0  + String( longitude.substring(2, 7).toInt() * 6 );
				else
					longitude = "0" + longitude.substring(0, 2) + String( longitude.substring(2, 7).toInt() * 6 );
				longitude = longitude.substring(0,5) + "." + longitude.substring(5, longitude.length());
			}
			if(pos_pt_lat == 1){
				v_tmp = "0." + latitude.substring(1, 7);
				v_tmp = String( v_tmp.toFloat() * 60 );
				if(v_tmp.toInt() < 10)
					latitude = latitude.substring(0, 1) + 0 + String( latitude.substring(2, 7).toInt() * 6 );
				else
					latitude = latitude.substring(0, 1) + String( latitude.substring(2, 7).toInt() * 6 );
				latitude = latitude.substring(0,4) + "." + latitude.substring(4, latitude.length());
			}else if(pos_pt_lat == 2){
				v_tmp = "0." + latitude.substring(2, 7);
				v_tmp = String( v_tmp.toFloat() * 60 );
				if(v_tmp.toInt() < 10)
					latitude = latitude.substring(0, 2) + 0 + String( latitude.substring(2, 7).toInt() * 6 );
				else
					latitude = latitude.substring(0, 2) + String( latitude.substring(2, 7).toInt() * 6 );
				latitude = latitude.substring(0,4) + "." + latitude.substring(4, latitude.length());
			}
			latitude = latitude + ",N," + longitude + "," + v_long;
			latitude.toCharArray(memo_ram.position[memo_ram.nb_position], latitude.length()+2);
			// Affichage flèches sur LCD Oled pour montrer qu'on avance
			display.clear();
			if (memo_ram.nb_position % 2 == 1 ) display.drawString(64, 20, "<<<<---"); else display.drawString(64, 20, "---<<<<");
			display.display();
			memo_ram.nb_position ++;
			if(!(Serial.available())) break;
			if(fin_reception) break;
		}
		if(Serial.available() == 0 || memo_ram.nb_position >= 50 || fin_reception) break;
	}
	// On va à la fin du fichier
	while(Serial.available()){ Serial.read(); }
}

// Menu Parametre wifi
void param_wifi() {
	B_menu = 0;
	B_menu = mes_menus_oled.init(nb_ch_menuD, _ch_menuD);
	delay(400);
	if (B_menu == 0) decouverte_wifi();
	else if (B_menu == 1){
		String ch_result;
		mon_sai_oled.init();
		ch_result = mon_sai_oled.aff_menu_Alpha();
		if(ch_result.length() > 2){
			ch_result.toCharArray(memo_ram.wifi_ip, ch_result.length()+1);
			maj_verif('z','z','x');
			ecriture_eeprom();
		}
	}
	else if (B_menu == 2){
		String ch_result;
		mon_sai_oled.init();
		ch_result = mon_sai_oled.aff_menu_Alpha();
		if(ch_result.length() > 2){
			memo_ram.wifi_port = ch_result.toDouble();
			maj_verif('z','z','z','x');
			ecriture_eeprom();
		}
	}
	else if (B_menu == 3){
		if( String(memo_ram.verif_data_w) == "1x2x3x4x"){
			cnx_wifi();
		}else{
				prep_aff_LCD(10);
				display.drawString(0, 0,  "*********************");
				display.drawString(0, 10, "Parametres incomplets");
				display.drawString(0, 20, "*********************");
				display.display();
		}
	}
	delay(400);
}

// Menu Parametre serie
void param_serie() {
	B_menu = 0;
	B_menu = mes_menus_oled.init(nb_ch_menuE, _ch_menuE);
	delay(400);
	if (B_menu == 0) memo_ram.rs422_vit = 4800;
	else if (B_menu == 1) memo_ram.rs422_vit = 38400;
	else if (B_menu == 2){
		String ch_result;
		mon_sai_oled.init();
		ch_result = mon_sai_oled.aff_menu_Alpha();
		if(ch_result.length() > 2){
			memo_ram.rs422_vit = ch_result.toDouble();
		}
	}
	else if (B_menu == 3){
		prep_aff_LCD(10);
		display.drawString(0, 0,  "SCHEMA LIAISON NMEA");
		display.drawString(0, 10, "  NMEA          RS422");
		display.drawString(0, 20, "Out(+)------------A");
		display.drawString(0, 30, "Out(-)------------B");
		display.drawString(0, 40, "IN(-)----------------Z");
		display.drawString(0, 50, "IN(+)----------------Y");
		display.display();
		delay(400);
		while(digitalRead(PinSW)){delay(10);}
	}
	if (B_menu != 4){
		maj_verif('z','z','z','z','x');
		ecriture_eeprom();
		swSer.begin(memo_ram.rs422_vit, SWSERIAL_8N1, sl_rx, sl_tx, false, 256);
	}
}

// Menu Parametre type réseau
void param_type_reseau() {
	B_menu = 0;
	B_menu = mes_menus_oled.init(nb_ch_menuC, _ch_menuC);
	delay(400);
	if (B_menu == 0) memo_ram.v_wifi = true;
	else if (B_menu == 1) memo_ram.v_wifi = false;
	else if (B_menu == 2){
		lire_kml();
		// Affichage du nombre de positions trouvées
		prep_aff_LCD(24);
		display.setTextAlignment(TEXT_ALIGN_CENTER);
		display.drawString(64, 10, String(memo_ram.nb_position) + " positions");
		display.drawString(64, 30, "trouvées");
		display.display();
		while(digitalRead(PinSW)){delay(10);}
		if(memo_ram.nb_position > 0){
			prep_aff_LCD(24);
			display.setTextAlignment(TEXT_ALIGN_CENTER);
			display.drawString(64, 10, "Sauvegarde");
			display.drawString(64, 30, "en cours");
			display.display();
			ecriture_eeprom_positions();
		}
	}
	if (B_menu < 2) ecriture_eeprom();
	delay(400);
}

// Menu Parametre
void parametre() {
	B_menu = 0;
	B_menu = mes_menus_oled.init(nb_ch_menuB, _ch_menuB);
	delay(400);
	if (B_menu == 0) param_type_reseau();
	else if (B_menu == 1) param_wifi();
	else if (B_menu == 2) param_serie();
	else if (B_menu == 3) aff_param();
	delay(200);
}

// Affiche compte-rendu enregistrement eeprom
void aff_eeprom(bool lect = true, bool memo_ok = false){
	delay(200);
		prep_aff_LCD(10);
		if(lect) display.drawString(20, 0, "Lecture EEPROM"); else display.drawString(20, 0, "Ecriture EEPROM");
		display.drawString(0, 10, "ssid : " + String(memo_ram.wifi_ssid));
		display.drawString(0, 20, "@ IP : " + String(memo_ram.wifi_ip));
		display.drawString(0, 30, "Port : " + String(memo_ram.wifi_port));
		if(memo_ok) display.drawString(40, 30, "< MEMO OK >");
		display.drawString(0, 40, "Vit S: " + String(memo_ram.rs422_vit));
		if(memo_ram.v_wifi) display.drawString(0, 50, "Liaison Wifi Active"); else display.drawString(0, 50, "Liaison RS422 Active");
		display.display();
	delay(4000);
}

// Lecture eeprom
void lecture_eeprom(){
	EEPROM.begin(sizeof(s_memo_rom));
	delay(500);
	EEPROM.get(adr_deb_memo_rom, memo_rom);
	delay(500);
	strcpy(memo_ram.verif_data_w, memo_rom.verif_data_w);
	strcpy(memo_ram.verif_data_s, memo_rom.verif_data_s);
	if(memo_ram.verif_data_w[0] == '1' && memo_ram.verif_data_w[2] == '2'){
		if(memo_ram.verif_data_w[1] == 'x') strcpy(memo_ram.wifi_ssid, memo_rom.wifi_ssid); else strcpy(memo_ram.wifi_ssid, "");
		if(memo_ram.verif_data_w[3] == 'x') strcpy(memo_ram.wifi_passe, memo_rom.wifi_passe); else strcpy(memo_ram.wifi_passe, "");
		if(memo_ram.verif_data_w[5] == 'x') strcpy(memo_ram.wifi_ip, memo_rom.wifi_ip); else strcpy(memo_ram.wifi_ip, "");
		if(memo_ram.verif_data_w[7] == 'x') memo_ram.wifi_port = memo_rom.wifi_port; else memo_ram.wifi_port = 0;
	}
	if(memo_ram.verif_data_s[0] == '1'){
		if(memo_ram.verif_data_s[1] == 'x') memo_ram.rs422_vit = memo_rom.rs422_vit; else memo_ram.rs422_vit = 0;
	}
	Serial.println();
	Serial.println("Lecture des positions kml de l'EEPROM");
	memo_ram.nb_position = memo_rom.nb_position;
	Serial.println("Nb Pos : " + String(memo_ram.nb_position));
	Serial.println();
	for(uint8_t i = 0; i <= memo_ram.nb_position; i++){
		strcpy(memo_ram.position[i], memo_rom.position[i]);
		delay(5);
		Serial.println(memo_rom.position[i]);
	}
	memo_ram.v_wifi = memo_rom.v_wifi;
	EEPROM.end();
	delay(500);
	aff_eeprom();
}

// Ecriture eeprom
void ecriture_eeprom(){
	EEPROM.begin(sizeof(s_memo_rom));
	delay(500);
	if(memo_ram.wifi_ssid != ""){ strcpy(memo_rom.wifi_ssid, memo_ram.wifi_ssid); memo_rom.verif_data_w[0] = '1'; memo_rom.verif_data_w[1] = 'x';}
	if(memo_ram.wifi_passe != ""){ strcpy(memo_rom.wifi_passe, memo_ram.wifi_passe); memo_rom.verif_data_w[2] = '2';; memo_rom.verif_data_w[3] = 'x';}
	if(memo_ram.wifi_ip != ""){ strcpy(memo_rom.wifi_ip, memo_ram.wifi_ip); memo_rom.verif_data_w[4] = '3'; memo_rom.verif_data_w[5] = 'x';}
	if(memo_ram.wifi_port != 0){ memo_rom.wifi_port = memo_ram.wifi_port; memo_rom.verif_data_w[6] = '4'; memo_rom.verif_data_w[7] = 'x';}else{memo_rom.wifi_port = 0;}
	if(memo_ram.rs422_vit != 0){ memo_rom.rs422_vit = memo_ram.rs422_vit; memo_rom.verif_data_s[0] = '1'; memo_rom.verif_data_s[1] = 'x';}else{memo_rom.rs422_vit = 0;}
	memo_rom.v_wifi = memo_ram.v_wifi;
	EEPROM.put(adr_deb_memo_rom, memo_rom);
	delay(500);
	bool ok = EEPROM.commit();
	delay(500);
	aff_eeprom(false, ok);
	EEPROM.end();
	delay(500);
}

// connexion wifi
void cnx_wifi() {
		int progress;
		int cpt=1;
		prep_aff_LCD(10);
		display.drawString(0, 0, "Tentative de connexion sur :");
		display.drawString(10, 10, memo_ram.wifi_ssid);
		display.display();
		WiFi.disconnect(true);
		delay(400);
		WiFi.begin(memo_ram.wifi_ssid, memo_ram.wifi_passe);
		while (WiFi.status() != WL_CONNECTED){
			progress = (cpt / 5) % 100;
			display.drawProgressBar(0, 30, 120, 10, progress);
			display.display();
			cpt++;
			if(cpt>=501) break;
			delay(10);
		}
		display.setTextAlignment(TEXT_ALIGN_LEFT);
		if (!client.connect(memo_ram.wifi_ip, memo_ram.wifi_port)) {
			prep_aff_LCD(10);
			display.drawString(0, 0, "Problème de connexion !");
			display.drawString(0, 10, "Parametres :");
			display.drawString(0, 20, memo_ram.wifi_ssid);
			display.drawString(0, 30, memo_ram.wifi_passe);
			display.drawString(0, 40, memo_ram.wifi_ip);
			display.drawString(0, 50, String(memo_ram.wifi_port));
		}else{
			display.drawString(0, 52, ">> Connexion réussie <<");
		}
		display.display();
		delay(200);
		while(digitalRead(PinSW)){delay(10);}
}

// Initialisation
void setup() {
	Serial.begin(4800); // Interface utilisée pour chargement des fichiers de coordonnées kml
	pinMode(PinSW, INPUT);
	display.init();
	display.flipScreenVertically();
	prep_aff_LCD(10);
	Wire.begin();
	// Init saisie OLED
	mon_sai_oled.init();
	mon_sai_oled.sortie_deb(false);
	lecture_eeprom();
	WiFi.mode(WIFI_STA);
	if( String(memo_ram.verif_data_w) == "1x2x3x4x") cnx_wifi();
	if( String(memo_ram.verif_data_s) == "1x") swSer.begin(memo_ram.rs422_vit, SWSERIAL_8N1, sl_rx, sl_tx, false, 256);
}

// Boucle principale
void loop() {
	delay(200);
	B_menu = 0;
	B_menu = mes_menus_oled.init(nb_ch_menuA, _ch_menuA);
	delay(300);
	if (B_menu == 0) parametre();
	else if (B_menu == 1) {if(memo_ram.v_wifi) li_trame_nmea(); else li_trame_nmea_serie(); delay(400); while(digitalRead(PinSW)){delay(10);}}
	else if (B_menu == 2) {if(memo_ram.v_wifi) cpt_trame_nmea(); else cpt_trame_nmea_serie(); delay(400);}
	else if (B_menu == 3) {if(memo_ram.v_wifi) aff_nmea_rmc(); else aff_nmea_rmc_serie(); delay(400); while(digitalRead(PinSW)){delay(10);}}
	else if (B_menu == 4) {envoi_rmc_rs422();}
	delay(400);
}
